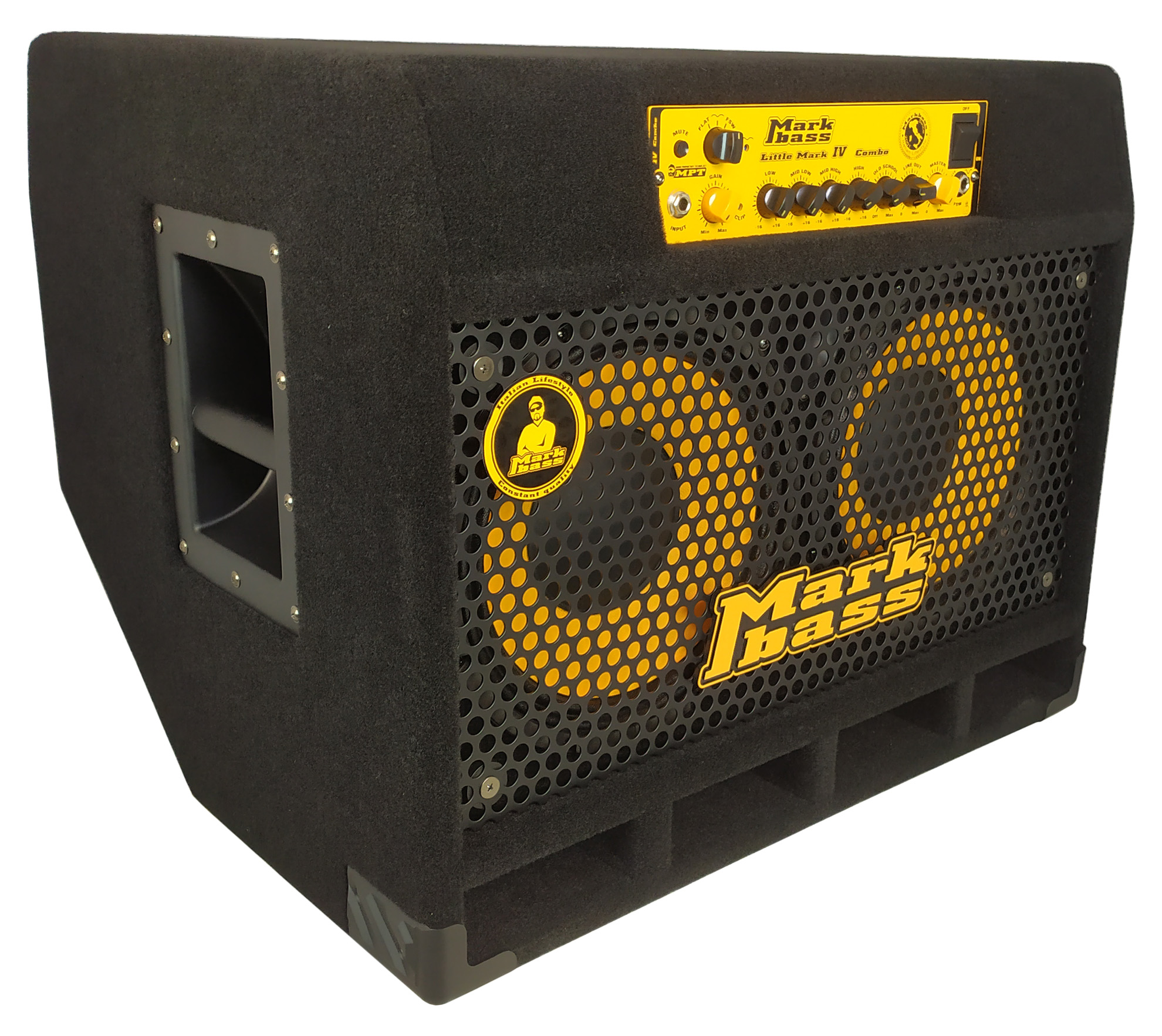

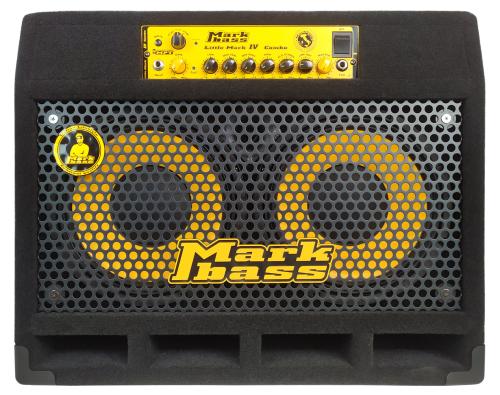

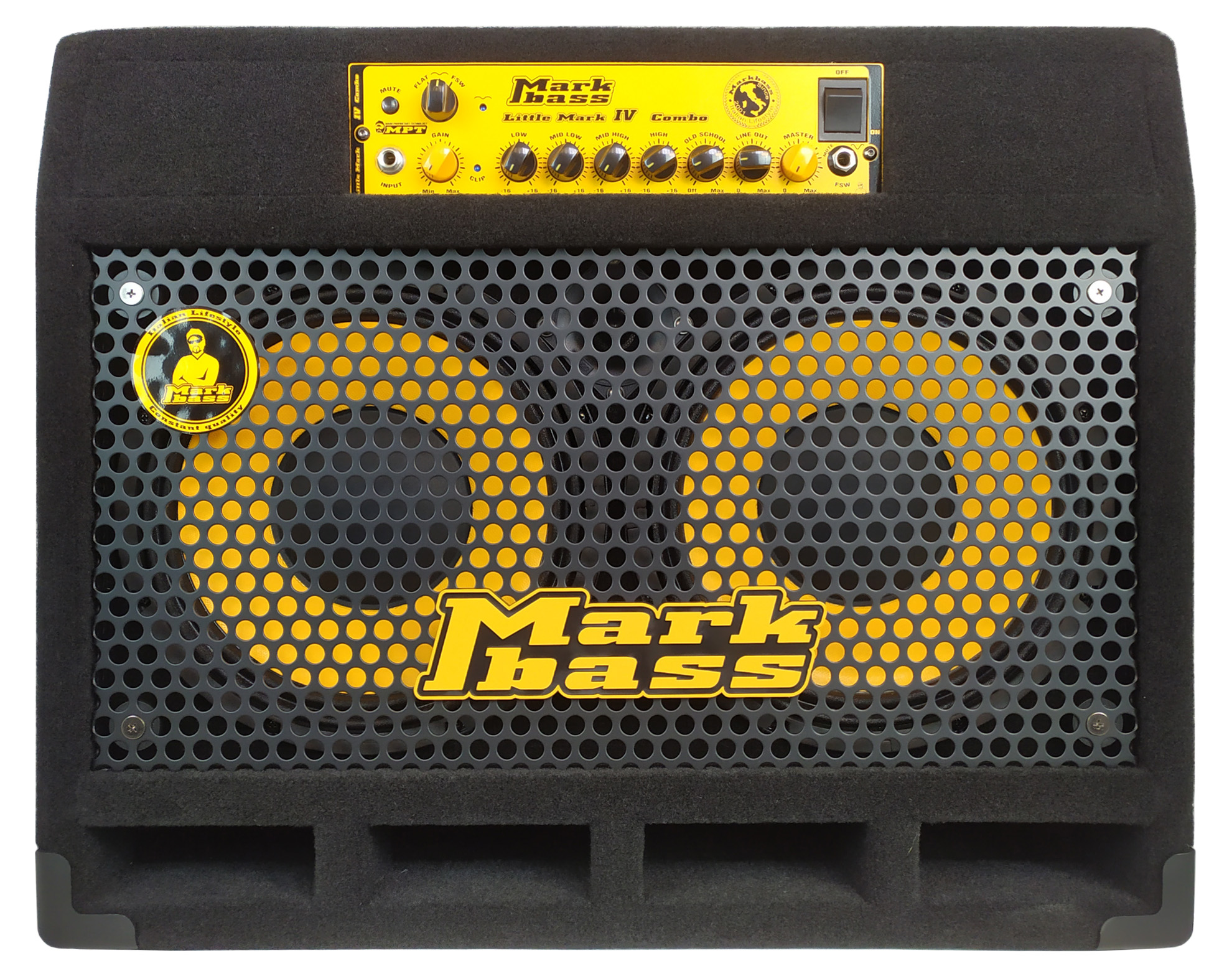

MARKBASS CMD 102 P IV

This front-ported 2x10 combo is a great option for gigging bassists who want to cut through the mix
without a big rig.
The more aggressive tone of the 10” speakers means you can often get by just with this combo,
but it does also stack with any 8 ohm Traveler or Standard cab, for more volume and headroom.
The CMD 102P IV combo is perfect for any situation. The new Little Mark IV Combo head features
the new bi-band limiter, a MUTE switch and the 3-way switch that includes the options of Flat,
Scooped or FSW.
The wedge cabinet design allows to use it either in a standard vertical position or as
floor monitor, offering to you the best monitoring on stage.

VERSATILITY
The CMD 102P IV combo just might be our most versatile combo! It's perfect for any situation.

UPDATED 4 BAND EQ, OLD SCHOOL FILTER, 3 WAY SWITCH
Our updated 4 band EQ section features very effective controls allowing you to easily find the sound
you want, boosting or cutting up to 16dB for each of the 4 bands to cover all the tonal nuances needed
in any genre of music. Additionally the Old School filter cuts your high frequencies and gives a round
and smooth tone. The 3 way rotary-switch allows you to choose between a super-balanced flat tone, a
scooped preset that drops the mids while boosting the lows and highs - giving a superb slap sound, or
lastly the 'FSW' option to control both mute and the Scooped EQ on demand by connecting an optional dual
footswitch.

BI-BAND LIMITER
Our new bi-band limiter responds faster and more dynamically to your playing than traditional limiters
do and lets your high end "breathe" for a more natural sound. It makes our amp heads the best choice for
anyone who enjoys a quick, punchy attack at high volumes.

WEDGE DESIGN
The angled cabinet design allows the unit to be used either as a floor monitor or in standard position.
The angled position is fantastic in applications where your amp is mostly for your personal monitoring,
so you can
perfectly hear yourself on any stage.

STACK WITH AN EXTENSION CABINET
If you add an external cabinet to the CMD 102P IV combo, you can fill a large venue with headroom to spare.
This combo stacks perfectly with any Traveler or Standard series cabinets.

LITTLE MARK IV COMBO specs

INPUTS
INPUT impedance: 1 Mohm, max. voltage: 9 Vpp
RETURN impedance: 22 Kohm, max. voltage: 10 Vpp

CONTROLS
GAIN –46 dB to +23 dB range
LINE OUT level control on front panel
PRE/POST EQ (for line out) switch on rear panel
GROUND LIFT switch on rear panel
MUTE SWITCH
MASTER VOLUME

EQUALIZATION
LOW: center frequency 68 Hz; level: ±16 dB
MID LOW: center frequency 360 Hz; level: ±16 dB
MID HIGH: center frequency 800 Hz; level: ±16 dB
HIGH: center frequency 10 kHz; level: ±16 dB
OLD SCHOOL: max cut range: 250 Hz – 20 kHz
3 WAY SWITCH: flat/scooped-mid/FSW

OUTPUTS
SEND EFFECTS: unbalanced, max. voltage 20 Vpp
TUNER OUT: unbalanced, max. voltage 2 Vpp
LINE OUT balanced XLR, max. voltage 20 Vpp
SPEAKER OUT: speakon/1/4” combo, 1/4”*

OTHERS
BI-BAND LIMITER
FOOTSWITCH (OPTIONAL): FLAT/SCOOPED-MID

OUTPUT POWER: 500W RMS @ 4 ohm, 300W RMS @ 8 ohm
POWER REQUIREMENT:
100V; 120V; 230V; 240V 50/60Hz (Voltage is factory preset according to region of sale)


SPEAKER: 2x10"
TWEETER: piezo
BASS PORT: front
IMPEDANCE: 8 ohms
SENSITIVITY: 101 dB SPL
SPEAKER POWER HANDLING:
400W RMS (AES Standard)
FREQUENCY RESPONSE: 40 Hz to 18 kHz
CROSSOVER FREQUENCY: 3.5 kHz
WEIGHT: 38.14 lbs / 17.3 Kg
WIDTH: 23.03 in. / 58.5 cm
HEIGHT: 18.5 in. / 47 cm
DEPTH: 18.7 in. / 47.5 cm
